ISISPACE S-Band High Data Rate Transmitter sets a new standard for CubeSat communication, offering unmatched performance with up to 4.3 Mbps of reliable downlink data transfer. Fully CCSDS-compliant, it ensures seamless compatibility with ground stations and off-the-shelf demodulators, eliminating the need for data pre-processing. All channel coding is performed inside the transmitter. With in-flight configurable parameters, this transmitter provides ultimate flexibility to optimise throughput during satellite overpasses, making it a top choice for high-performance missions.

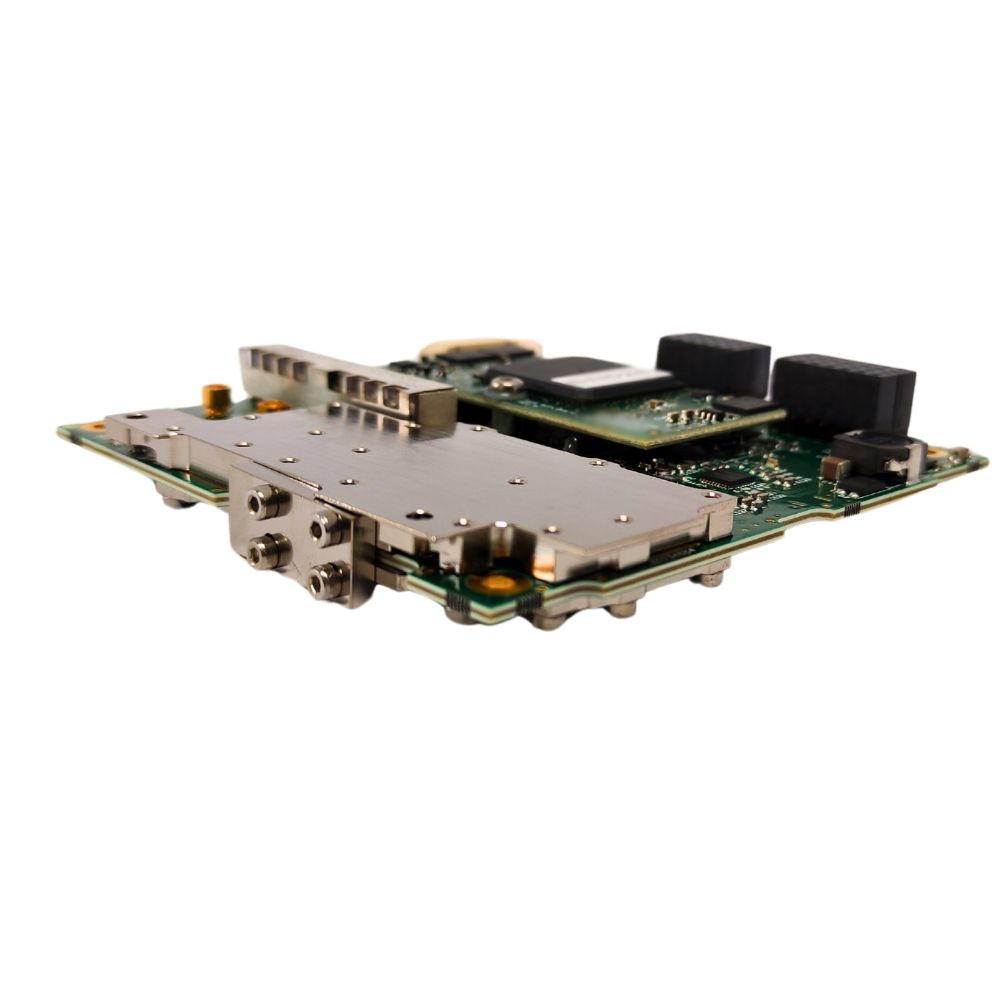

S-Band High Data Rate Transmitter
- Powered by a MicroSemi SmartFusion2 SoC with a dedicated MCU for power management and telemetry
- High-speed LVDS interface for payload data; I2C support for low-speed transmissions
- Operates in 2200-2290 MHz EESS/SRS/SOS spectrum
- In-flight configurable RF parameters for optimised throughput during overpasses
- I2C and CAN watchdog implementation
Dedicated MCU for power management & telemetry
In-flight configurable RF parameters
Powered by a MicroSemi SmartFusion2 SoC
Product Specification
| Mass |
<140g |
||
|---|---|---|---|
| Dimensions |
98.81 x 93.26 x 14.52 mm |
||
| Operational Temperature |
-20 to +50°C |
||
| Frequency Range |
2200-2290 MHz |
||
| Frequency Step Size |
1 kHz |
||
| Frequency Stability |
±10 ppm |
||
| RF Output Power |
27 to 33 dBm (settable) ± 1 dB |
||
| Spurious Emissions |
< -60 dBc |
||
| Transmitted Data Rate (on-air) |
Up to 10 Mbit/s (5 Msym/s, OQPSK) |
||
| Useful information Bit Rate |
>10 dB up to 4.3 Mbit/s (at TM transfer frame level), settable in 6 steps |
||
| Modulation Scheme |
Suppressed Carrier: BPSK, OQPSK as per CCSDS 401.0-B |
||
| Pulse Shaping Filter |
Root raised cosine Nyquist pulse shaping as per CCSDS 413.0-G. |
||
| Forward Error Correction |
|
||
| Pseudorandomisation |
As per CCSDS 131.0-B |
||
| Synchronisation |
|
||
| Power Consumption |
13 W (for 33 dBm RF output power) |
||
| DC Supply Voltage |
7 to 20 V |
||
| Payload Data Interface |
LVDS |
||
| Housekeeping Data Interface |
I2C |
Qualification and Acceptance Testing
| QT
Is performed on the design/qualification model |
AT
Is performed on the unit to be shipped |
|
|---|---|---|
| Functional Test |
|
|
| Thermal Vacuum |
|
|
| Thermal Cycling |
|
|
| Vibration Test |
|
|
| Mechanical Shock Test |
|
|
